When to Use KCL vs. KVL
4. Choosing the Right Tool for the Job
Now that we understand the basics of KCL and KVL, the next question is: when do we use each law? Generally, KCL is most useful when analyzing circuits with multiple parallel branches, as it allows you to determine the current distribution among those branches. KVL, on the other hand, is most useful when analyzing circuits with series components, as it allows you to determine the voltage distribution across those components.

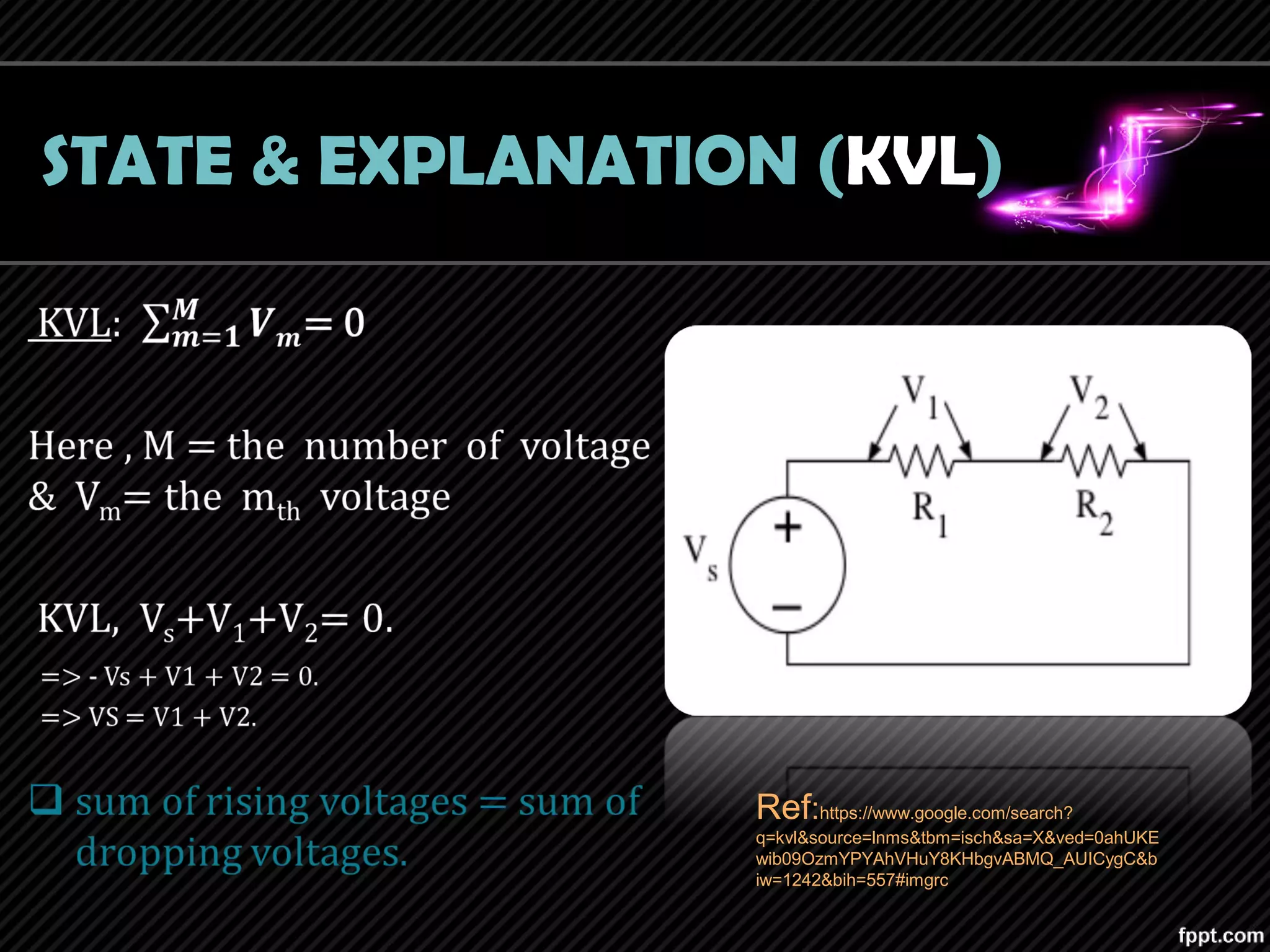

Think of KCL as your go-to tool when you're dealing with nodes and figuring out how current splits or combines. If you see multiple paths for current to flow, KCL is likely the answer. On the other hand, think of KVL as your friend when you need to analyze voltage drops around a loop. If you can trace a closed path in the circuit and want to relate the voltages in that path, KVL is the way to go.
In practice, many circuit analysis problems require the use of both KCL and KVL. You might use KCL to find unknown currents at a node and then use KVL to find unknown voltages around a loop. They often work together to provide a complete picture of the circuit's behavior.
It's also important to consider the type of circuit you're dealing with. For example, in a simple series circuit, KVL is usually sufficient to solve for the unknown voltages. In a more complex parallel-series circuit, you might need to apply both KCL and KVL to different parts of the circuit to fully analyze it. The more you practice, the easier it becomes to choose the right tool for the job!
